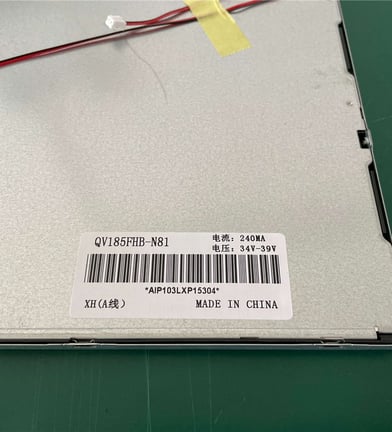

BOE QV185FHB-N81 18.5 inch HD LCD Display with high definition 1920*1080

BOE QV185FHB-N81 is a 18.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C.

BOE QV185FHB-N81 18.5 inch HD LCD Display with high definition 1920*1080
BOE QV185FHB-N81 18.5 inch HD LCD Display with high definition 1920*1080
BOE QV185FHB-N81 18.5 inch HD LCD Display with high definition 1920*1080
BOE QV185FHB-N81 18.5 inch HD LCD Display with high definition 1920*1080

Brand: BOE

Model: QV185FHB-N81

Diagonal Size: 18.5 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 1920*1080

Configuration: RGB Vertical Stripe

Treatment: Antiglare (Haze 25%), Hard coating (3H)

Luminance: 250 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)

View Direction: 6 o'clock

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down

Support Color: 16.7M 72% NTSC

Light Source: WLED

Designed For: Desktop Monitor Industrial

Frame Rate: 60Hz

Touch Panel: Without

Interface Type: LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply: 5.0V (Typ.)
